Inside SMT Shops Racing on Compute Orders

Why the Yield Bottleneck Always Sticks at

"a Jar of Solder Paste"?

CHAPTER ONE · THE PARADOX

Capacity is truly maxed out,

yet yield stays frozen

As global compute infrastructure heats up, orders for domestic AI chips such as Ascend are flooding in. SMT manufacturers are enjoying a rare order window.

Step onto the floor and placement lines running at full tilt are the norm. Factories spare no expense adding lines, importing high-end placement machines, and endlessly tuning reflow profiles. Yet when capacity truly maxes out, a harsh reality surfaces: BGA void rates stay stubbornly high and cold-joint rework keeps recurring. After ruling out process parameters, incoming quality and PCB fabrication one by one, the culprit turns out to be the most unassuming thing on the line — a jar of solder paste.

Millions can be lavished on core equipment,
yet the hard metric of soldering yield refuses to budge.

II

CHAPTER TWO · THE STAKES

Why high-end orders test solder paste

so severely?

An AI server motherboard is the "stress test" of SMT: a large board, dense BGA, thousands of joints per panel, required to run reliably 24/7. Yet most factories still rely on the legacy model of "fridge storage, manual handling, gut-feel judgment" — which collapses under high-end orders. Yield loss is rarely caused by a single step; it is the inevitable result of hazards accumulating link by link along the chain.

A BRIEF INTERLUDE

— Where is the crux? The legacy model cannot clear four hurdles —

III

CHAPTER THREE · THE FOUR HURDLES

The legacy model

and its four hurdles

01STORAGE

No storage standard — paste activity quietly decays

Keeping paste in ordinary industrial fridges, with frequent door openings causing temperature swings and uneven cold, quietly ages the flux and degrades wetting. Many cold-joint and void defects that defy troubleshooting were actually seeded at the storage stage.

02THAW

Manual thawing and stirring — quality swings out of control

Thaw duration is timed by hand and mixing relies on experience, so every jar differs. Fine-pitch BGA server boards are especially demanding: uneven mixing clumps the paste, under-thawing degrades joints — rework eats profits and delivery cycles stretch out.

03MIX

Disorderly storage — loss and batch risk side by side

Server lines run multiple paste grades, red glue and solder balls in parallel; under manual stacking, FIFO is a dead letter. Old batches expiring is the minor cost — grab the wrong grade and you can trigger a full batch-level quality incident.

04TRACE

No traceability — high-end qualifications stay out of reach

Server makers set hard traceability gates across the chain: inbound time, thaw duration, batch used and work order must all be recorded and queryable. Paper ledgers inevitably err and omit — customer audits fail, and no matter how many orders there are, missing qualifications keep you out.

Yield loss is rarely caused by a single step,
but the inevitable result of hazards accumulating link by link.

Factories that reliably win high-end orders are not competing on stacked core equipment — they compete onstandardization and controllability of every basic step.

IV

CHAPTER FOUR · THE FOUR REMEDIES

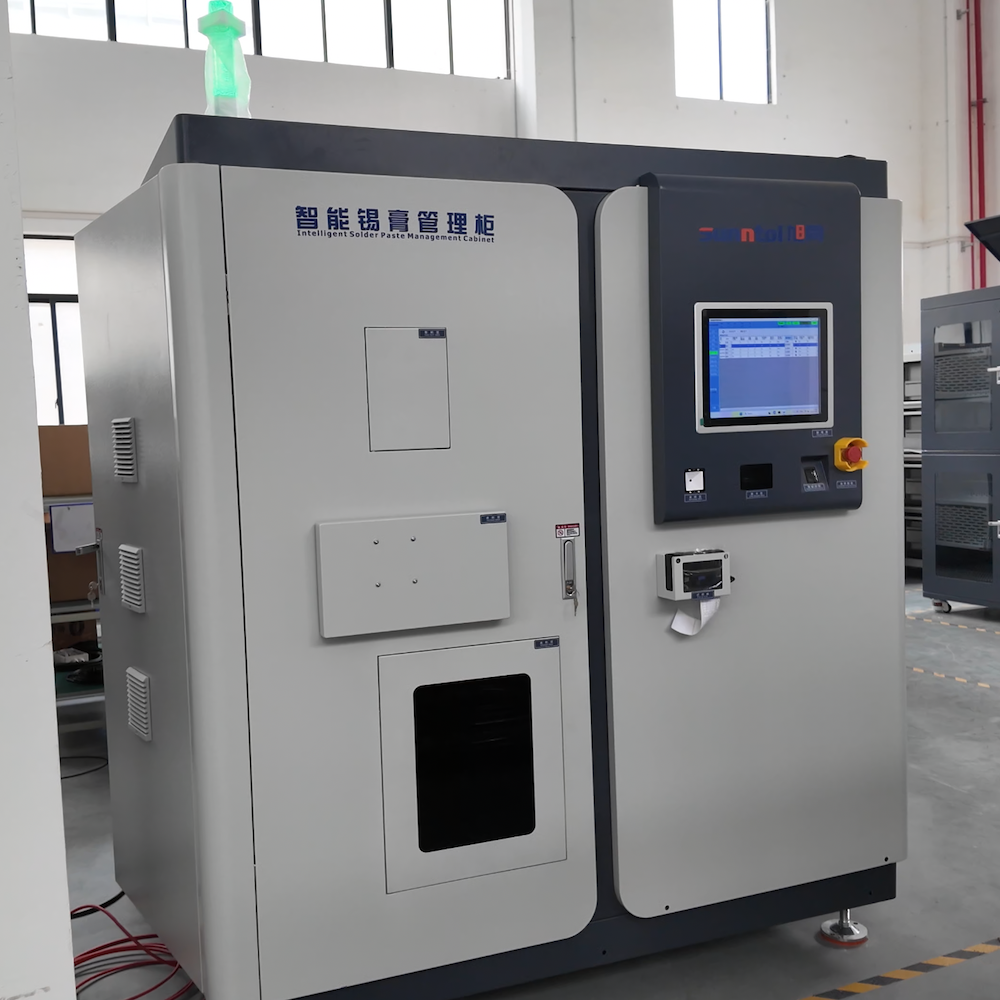

The SUNNTOL Smart Solder Paste Cabinet

and its four remedies

01TEMP

Precision temperature control — locking in paste activity at the source

The full range features dual-circuit refrigeration with a built-in condensate evaporation system for even, dead-corner-free temperature. The HC-W constant-temperature model adds a 19-25℃ thaw-zone control, keeping even server-grade and automotive-grade paste at peak activity — the first line of defense for soldering reliability.

02FLOW

Standardized workflow — every jar identical

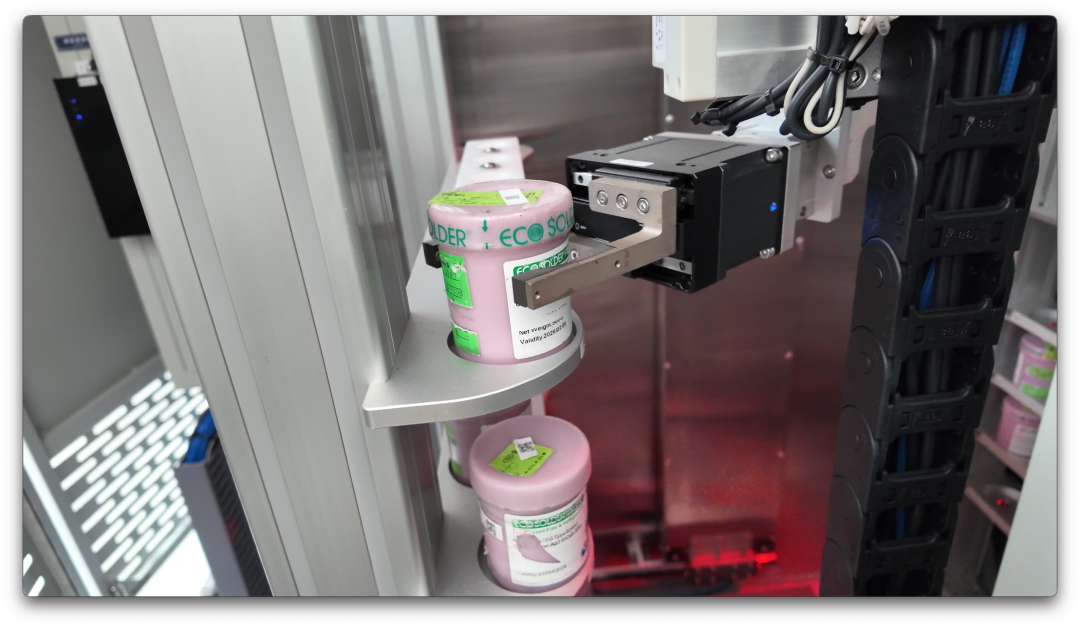

Thawing is pre-scheduled; when the timer finishes, a robotic arm auto-transfers each jar to the stirring station with parameterized speed and duration, so every jar follows an identical standard process. Human experience no longer decides quality — BGA void rates drop and line yield stays stable and controllable.

03STORE

Smart segmented storage — no mix-ups even with mixed materials

Dedicated slots with one-jar-one-code identity let paste, red glue, tube paste and solder balls coexist safely; the robotic hand picks precisely and strictly enforces FIFO — easing stale-stock loss while eliminating mix-up risk at the root.

04TRACE

Full-chain data traceability — audits served with one click

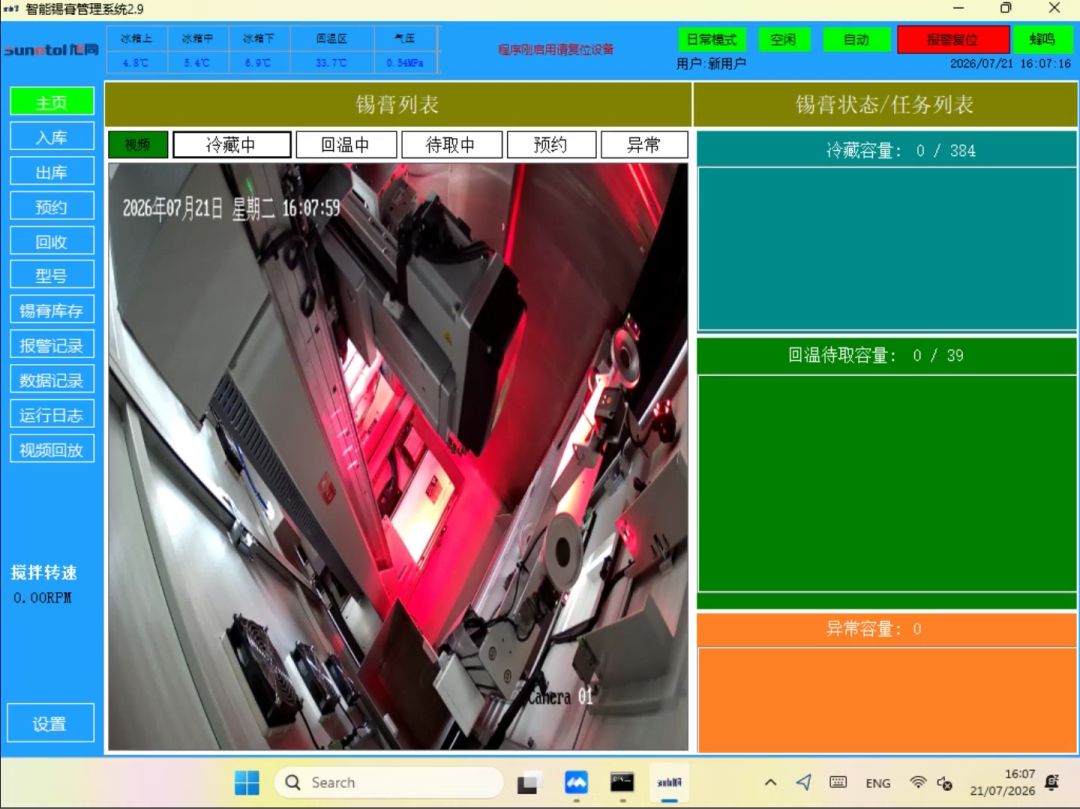

Every operation is auto-logged, inventory is visualized in real time and exportable, and it integrates seamlessly with MES/ERP. From inbound to issue, the whole flow is documented — pull complete records with one click during customer audits.

Solder paste management moves from "experience-driven"

to "standard-driven".

The SUNNTOL Smart Solder Paste Cabinet turns paste — an uncontrollable variable —
into a stable quality constant.

FINALE

POSTSCRIPT · A SHIFT IN THE GAME

From the "capacity race"

to the "quality race"

Under the compute wave, SMT is being reshuffled from a "capacity race" to a "quality race." Many factories splurge on placement machines and reflow ovens, yet overlook solder paste management — the most basic and most critical link in production.

The SUNNTOL HC-series smart solder paste cabinets now cover 30 to 860 jars across the full capacity range — from small-batch high-end pilot lines to large-scale multi-line compute manufacturing bases, a matching paste management solution is available.

— TALK TO US —

Is your workshop

taking on server-class orders lately?

Facing similar solder paste management headaches?
Leave a comment and let's talk.

XUTONG

SMART SOLDER PASTE CABINET

Keep every jar of paste
known, controlled and traceable.
